AIRONE 200N-300N

Hoists with telescopic arm. The raised loading point simplifies the passing of materials through windows. Extensible arm up to 1100 mm. Max. capacity 200/300 kg

enquiry form

product sheet

standard equipment

Work positioning lever
IP67 plug
Prearrangement for all IMER supports (gantry excluded) on Airone 200 N
Upper limit safety device
Direct control with 3-pushbutton IP65 1.5-m pendant control
Self-braking motor with magnetic device

applications

The special machine configuration makes it easy to install thanks to better weight distribution for the operator. The raised loading point simplifies the passing of materials through windows. Airone 200 N and Airone 300 New have an extensible arm up to 1100 mm. Maximum capacity remains unchanged for the entire extension so bulky material can be lifted without the risk of striking the structures.

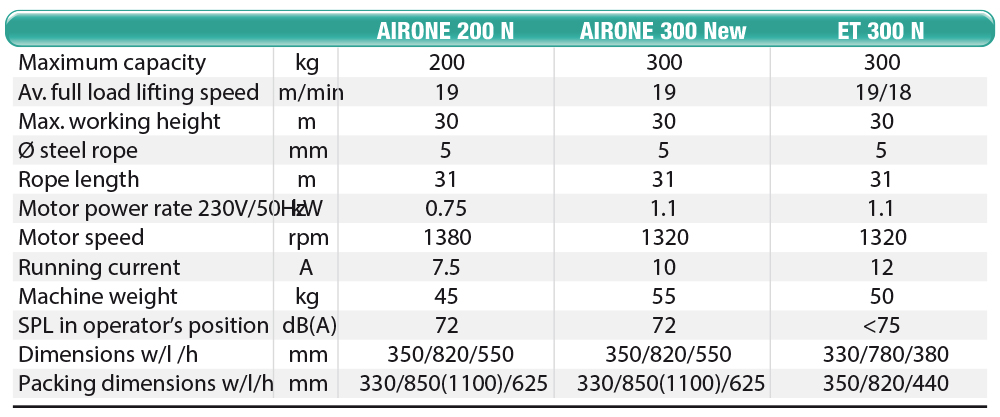

data sheet

optional accessories

Prop
Ballast container
