EDILGRAPPA

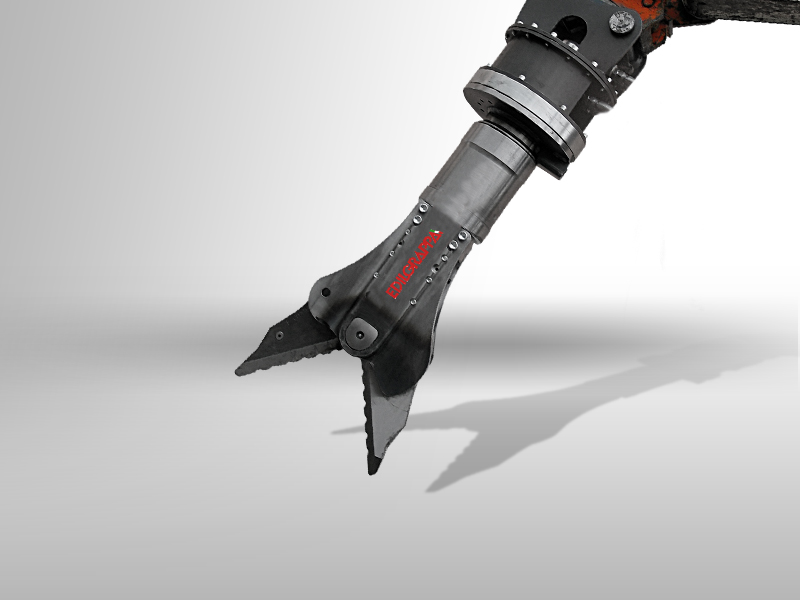

COMBI-CUTTER F450M
Suitable for industrial and nuclear demolition applications
ζητηστε πληροφοριες
φωτογραφιες προϊοντος
data sheet
| DIMENSIONS (without bracket) | 1020x451x320 mm |
| WEIGHT (without bracket) | 197 Kg |
| BLADE OPENING AT THE TIPS | 450 mm |
| BLADE DEPTH MAX | 250 mm |

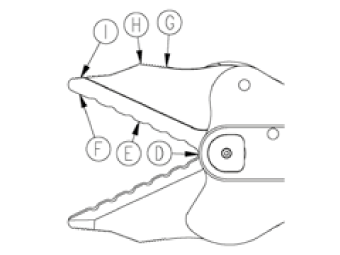

| CUTTING FORCE | D 657 kN – E 206 kN – F 117 kN |
| SPREADING FORCE | G 294 kN – H 156 kN – I 88 kN |
| ROTATION ANGLE | 360° |
| INLET PRESSURE/OIL FLOW | 200 bar – 150 l/min |
